High Speed D Motion
Advanced D-Motion Speed
Advanced D-motion technology delivering exceptional speed, stable sealing and continuous operation.

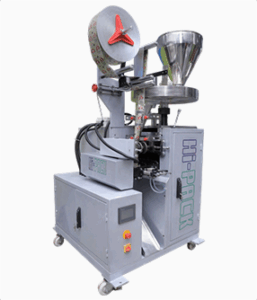

96 B High Speed D- Motion
96 B High Speed D- Motion
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Three/ four side |
| Speed | 250 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Granules, Powder, Paan Masala |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 0.5gm- 5 gm |
| Power Consumption | |
| Maximum Roll Width | 250 mm |
| Main Motor | |
| Dimension of machine | |
| Machine Weight | |
| Air Compressor | |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |
