FFS Machine
Fully Automated FFS
Integrated FFS system offering fast, efficient and fully automated packaging performance.
102 Pneumatic Auger Collar Type
102 Pneumatic Auger Collar Type
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Center |
| Speed | 60 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Fine powder, Mehndi, spices, atta, maida (Specially fine powder those stucks in hopper) |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Auger Filler |
| Filling Capacity | 10gm-2000gm |
| Power Consumption | 7 kW/ Hr |
| Maximum Roll Width | 450 mm |
| Main Motor | 230 V, Single Phase |
| Dimension of machine | 1500 x 1200 x 3000 mm |
| Machine Weight | 1050 kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 4 cu Mtrs/Hr |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |
101 Pneumatic Collar Type
101 Pneumatic Collar Type
Specifications
| Film Code | Film Description |
|---|---|
| No of Heads | NA |
| Sealing Style | Center |
| Speed | 60 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Servo Make | Delta 1 kW |
| Product to be Packed | Snacks, Tea, Grains, Sugar, Coffee, Spices, Detergent powder, Salt, etc. |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 10gm- 2000gm |
| Power Consumption | 2.5 kW/ Hr |
| Maximum Roll Width | 450 mm |
| Main Motor | 230 V, Single Phase |
| Dimension of machine | 1300 x 980 x 2500 mm |
| Machine Weight | 750 kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 4 cu Mtrs/Hr |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | HMI based |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Pneumatic air |
| Display Setting | Through touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Batch Cutter Operation | Pneumatic |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
| Film -Draw off | Servo Motor |
| Filling | Fully controlled by servo |
| Safety | SS Covering/ Acrylic Sheet (As per machine & Customer requirement) |
| Film Tracking | Manual |
98 Flow Wrap
98 Flow Wrap
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Center Seal |
| Speed | 120 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Biscuits, waffer sticks, cake, soap, rusk, chocolate bar, instant noodles, hardware products,Engineering Components, etc. |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Manual/ Automatic Feeding |
| Filling Capacity | Length 70-300 mm, Width 30-180 mm, height 3-100 mm |
| Power Consumption | 3 kW |
| Maximum Roll Width | |
| Main Motor | 1 HP/AC with AC Drive/ available, 220 V/440 V, 1 phase/ 3 phase |
| Dimension of machine | 3000 x 1700 x 1800 mm |
| Machine Weight | 580 Kg (Approx) |
| Air Compressor | NA |
| Weight Variation | NA |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | According to the Customer requirement |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | NA |

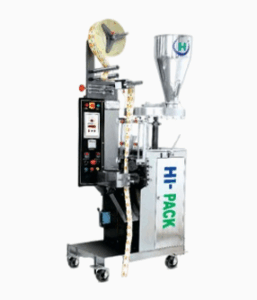

99 A Hi- Speed Cup Filler
99 A Hi- Speed Cup Filler
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Three Side/Four Side |
| Speed | 350 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Powder & Granules |
| PLC | According to the Customer requirement |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 0.5gm-20gm |
| Power Consumption | 2.5 kW |
| Maximum Roll Width | 280 mm |
| Main Motor | 1 HP, 230V, Single Phase |
| Dimension of machine | 900 x 650 x 2300 mm |
| Machine Weight | 450 Kg (Approx) |
| Air Compressor | NA |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | According to the Customer requirement |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | NA |

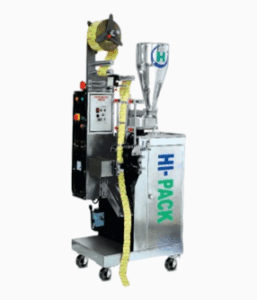

99 Cup Filler
99 Cup Filler
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Three Side/Four Side |
| Speed | 65 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Powder & Granules |
| PLC | According to the Customer requirement |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 0.5gm-25gm |
| Power Consumption | 2 kW |
| Maximum Roll Width | 280 mm |
| Main Motor | 0.25HP/0.5HP, 230V, Single Phase |
| Dimension of machine | 900 x 650 x 2000 mm |
| Machine Weight | 350 Kg (Approx) |
| Air Compressor | NA |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | According to the Customer requirement |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | NA |
96 Cup Filler
96 Cup Filler
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Three Side/Four Side |
| Speed | 45 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Powder & Granules |
| PLC | According to the Customer requirement |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 5gm- 250gm |
| Power Consumption | 2 kW |
| Maximum Roll Width | 280 mm |
| Main Motor | 0.25HP/0.5HP, 230V, Single Phase |
| Dimension of machine | 750 x 600 x 3000 mm |
| Machine Weight | 550 Kg (Approx) |
| Air Compressor | NA |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | According to the Customer requirement |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | NA |

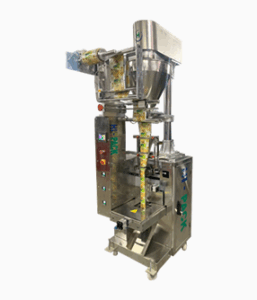

95 B Pneumatic Auger Filler
95 B Pneumatic Auger Filler
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Three Side/Four Side/Center Side |
| Speed | 90 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Fine Powder |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Auger Filler |
| Filling Capacity | 5gm-500 gm |
| Power Consumption | 4 kW |
| Maximum Roll Width | 280 mm |
| Main Motor | 0.25HP/0.5HP, 230V, Single Phase |
| Dimension of machine | 1000 x 1000 x 3000 mm |
| Machine Weight | 450 Kg (Approx) |
| Air Compressor | NA |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | Through Touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |

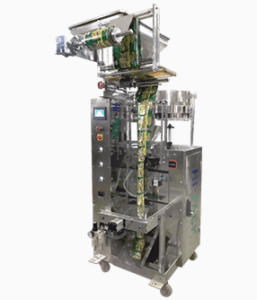

95 A Pneumatic Cup Filler
95 A Pneumatic Cup Filler
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Three Side/Center Side |
| Speed | 90 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Powder & Granules |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Cup Filler |
| Filling Capacity | 5gm-500 gm |
| Power Consumption | 2 kW |
| Maximum Roll Width | 280 mm |
| Main Motor | 0.25HP/0.5HP, 230V, Single Phase |
| Dimension of machine | 750 x 600 x 2600 mm |
| Machine Weight | 450 Kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 2.5 cu Mtrs/ Hr. |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | Through Touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |

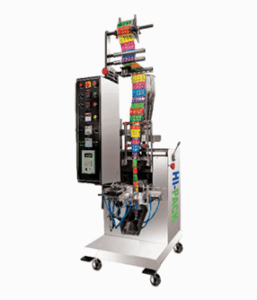

95 Pneumatic Triangle Machine
95 Pneumatic Triangle Machine
Specifications
| Film Code | Film Description |
|---|---|
| Sealing Style | Triangle |
| Speed | 45 pouches/min maximum(Depends upon the type of product & quantity to be filled) |
| Packing Material | Heat Sealable Laminate |
| Product to be Packed | Paste, Liquid & Granules |
| PLC | Delta (According to the machine & Customer requirement) |
| Filling Mechanism | Volumetric Cup/ Piston Filler |
| Filling Capacity | 5gm-250 gm |
| Power Consumption | 2 kW |
| Maximum Roll Width | 280 mm |
| Main Motor | 0.25HP/0.5HP, 230V, Single Phase |
| Dimension of machine | 750 x 600 x 2600 mm |
| Machine Weight | 450 Kg (Approx) |
| Air Compressor | Operating Pressure 7 Bar, Consumption 2.5 cu Mtrs/ Hr. |
| Weight Variation | within +/- 1%** of the filled quantity |
| Temprature controller | Select (According to customer requirement) |
| Machine Colour | Shell Grey- Powder coated |
| Vertical & Horizontal Sealing | Lining, knurling, Diamond (According to Pouch & customer requirement) |
| Display Setting | Through Touch panel screen |
| Machine Structure | MS/SS-304/316/202 (As per customer requirement ) |
| Perforation and Cutting | As per customer requirement |
| Pneumatics | Festo/ Camozzi/ Pneumax (As per customer requirement) |
